Bolivia Popular 820 IBR Hoja trapezoidal 825 Panel de hoja de techo de teja corrugada Máquina formadora de rollos de doble capa

  • Máquina de azulejos 825 y 820

  • STEELMAMA

Estado de Disponibilidad:
Cantidad:

Bolivia Popular 820 IBR Trapezoidal Sheet 825 Corrugated Tile Roofing Sheet Panel Double Layer Making Roll Forming Machine

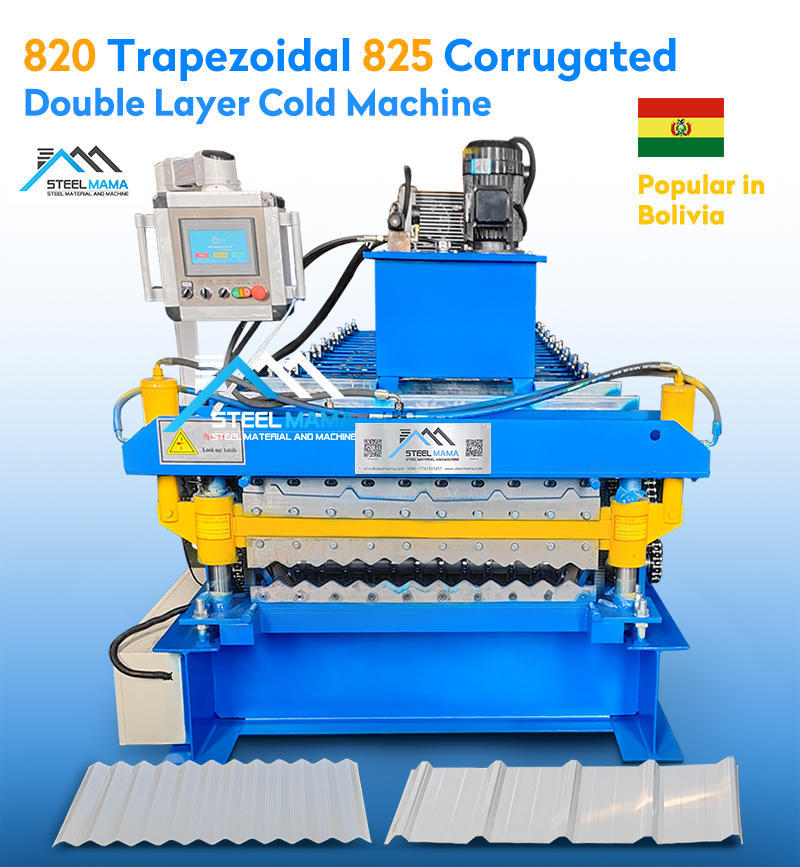

double layer sheet forming machine

PRODUCTION DESCRIPTION

glazed tile machine for prefab house / galvanized steel roofing step tile machine

The working principle of the galvanized steel tile machine adopts the new hydraulic shearing system and uses the working principle of the gear oil pump.

825&820 Glazed tile machine equipment is a traditional Chinese building component, which is usually painted with golden, emerald green, blue and other colored lead glazes. There are more than a hundred kinds of glaze colors, and at the same time, it does not have the phenomenon of anti-lead on the glaze of lead-glazed tiles affecting the decorative effect. Therefore, Western-style tiles are used in modern construction.Building more and more widely used.

825&820 COLOR TILE MACHINE FEATURES

1. The color metal roofing tile machine is a hydraulic cylinder that drives the mold to move up and down, which can press the color steel into many sections,which look like glazed tiles. The cutter part is driven by the hydraulic cylinder to move the cutter up and down, which can cut the colored steel tiles.

2. The arch sheet roof tile machine includes a frequency converter drive motor, a hydraulic station motor, two hydraulic solenoid valves for pressing, and two hydraulic solenoid valves for the cutter.

3. The metal tile machine has 14 inputs/10 relay outputs, just meeting the input and output requirements. Equipped with KDN text screen, it can complete parameter setting, alarm display, help information, production data display and so on.

4. There are many parameters to be set for the glazed tile machine, which can be set on the text screen. There are two types of parameter setting: device parameter and user parameter setting. Equipment parameters include: single pulse length, overshoot, pressing distance, pressing time, cutting time and so on.

User parameters are:Number of sheets, length, section, last section, pitch, number of sections, etc.

WORK FLOW

2023 best seller high quality Combined double layer 825 corrugated and 820 trapezoidal roof sheet roll forming machine

Uncoiler  →  Molding core  →  Hydraulic System  →   Automatic Control system  →   Step Formed Mechanism  →Automatic Shearing Mechanism  →   Products Receiving Tables


Tile machine

COLOR METAL ROOFING TILE MACHINE COMPONENTS

825&820 glazed tile machine

Decoiler

1 set

Feeding Device  With Pre-sliding Cutter

1 set

Forming Machine

1 set

Cutting Device

1 set

PLC Control Box

1 set
  Hydraulic Pump Station 1 set
Production Support Table 1 set

 1  Decoiler

Max. Width 1000-1250mm Floor Decking Machine (7)
Inner Diameter Φ450 – Φ550 mm
Out Diameter 1500 mm
Max. Loading Capacity: 5000 kgs
Working Way Passive or hydraulic

 2  Feeding device with

    Pre-sliding cutter

tile roll forming machine

 3  Roll Forming Machine

Material Thickness 0.25-0.8mm PPGI and GI cheap roof tile machine
NO. of Roller Stations 10-18 stations
Material for Rollers

45# steel polished and coated

with chrome HRC58-62°

Material for Shaft High grade 45# steel polished(CNC lathe)
Diameter of Shaft 70mm(Solid shaft)
Frame Panel 16*290*330mm
Bottom Frame 350x8mm H steel
Motor Power 3.8/5.5KW x 2(servo motor)
Driven Type Wall Plate Chain Drive
Chain and Gear 1", chain
Speed About 4-6m/min

 4  Cut-off Device

Material for Cut-Off Modular Cr12 steel after treatment Double layer roof tile making forming machine
Hardness for Heat Treatment HRC58 – 62°
Cut-Off Type Qualified pillar cutting
Motor for Hydraulic Stand 5.5KW
Punching Die Material Cr12 steel after treatment



 5  PLC Control Box

Type PLC Frequency Control System with touch screen Floor Decking Machine (5)
PLC Brand Delta  Encoder Brand: Omron
Length Error ±2mm
Language English and Chinese
Voltage 380v/50HZ, 3Phase (It depends on customer requirement)


 6  Hydraulic Pump Station

Oil type 46# hydraulic oil Floor Decking Machine (9)
Pump brand China brand
Motor power 5.5kw
Solenoid valves Huade brand
Solid valve Single
Cooling way Fan

 7  Production Support Table


Manual type


Auto stacker

Roof sheet machine 7                                 auto stacker

PRECAUTIONS

1. Before using the colored glazed tile machine, we must understand all the performance of the tile press and the wiring of the workshop, otherwise it is easy to misuse,The consequences are difficult to predict.

2. Before using the color roof tile machine, you need to set some data, check the time of the motor and the condition of the electric console, if any problems are found during the inspection problem, to be resolved in a timely manner. To check the degree of the motor, all power must be turned off before using the back of the hand ,Check the motor.

3. During the construction of the metal tile machine, other irrelevant wires and live equipment should not be mixed with the electricity and wires required for the construction of the tile press.During the period, the electricity and wires that were originally laid cannot be easily changed.

4. It is necessary to inspect and maintain the automatic glazed roof tile machine frequently, and all electricity and lines that do not need to be used must be evacuated from the construction site.

High Quality Double Layer Roofing Sheet Rolling Machine

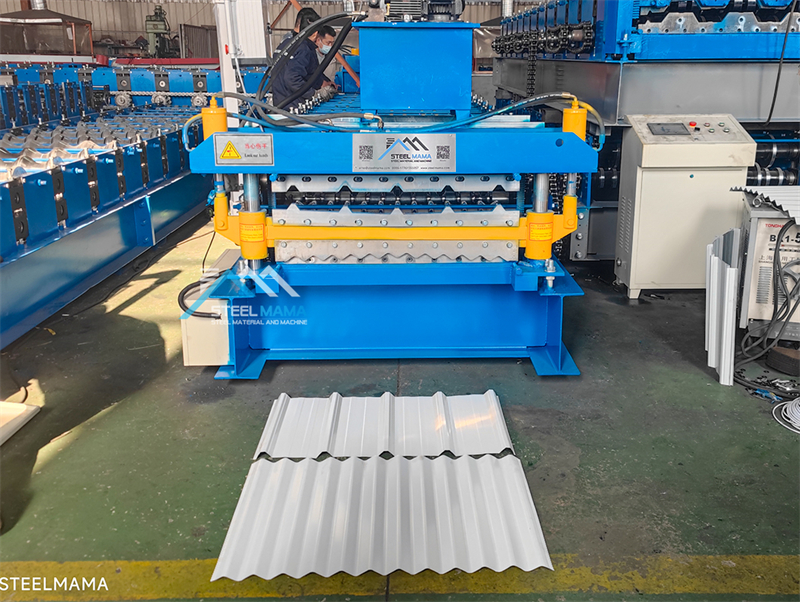

double color sheet making machine

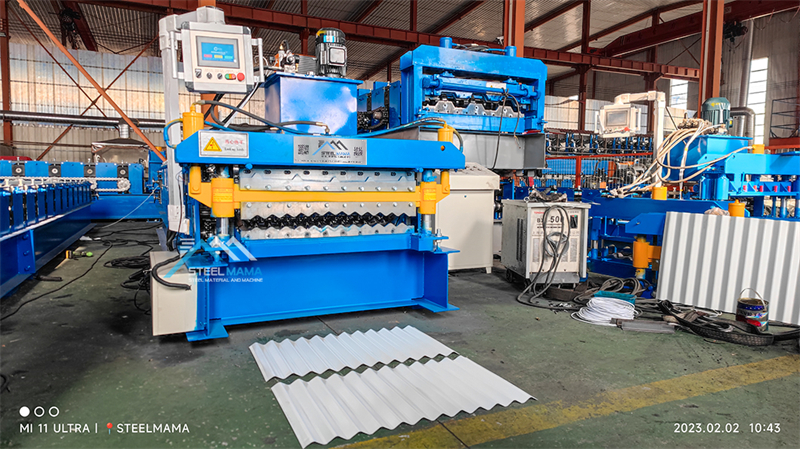

double layer corrugated roof sheet making machine

double layer corrugated roof sheet making machine

double layer corrugated forming machine

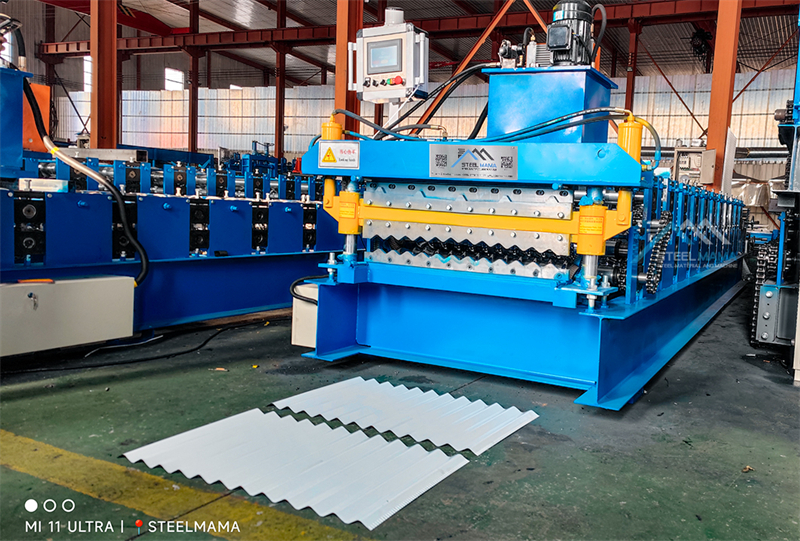

double roofing sheet making machine

double layer tile forming machine

double color sheet making machine

820 Trapezoidal 825 Corrugated Double Layer Forming Machine

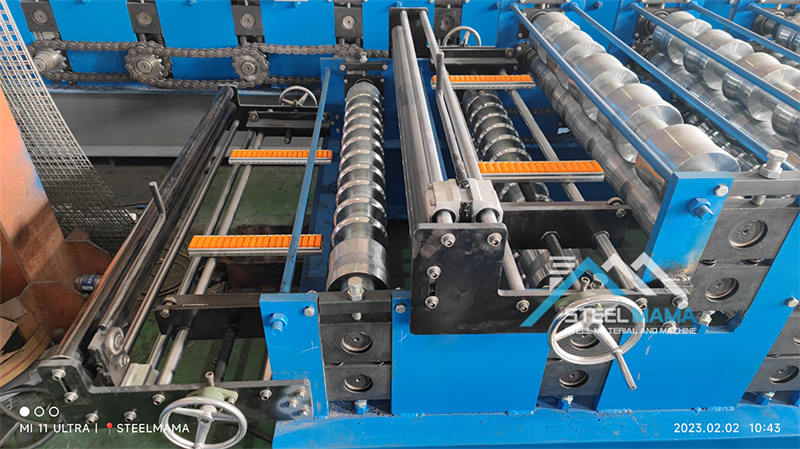

double layer roof panel machine

820 Trapezoidal Roof Sheet Machine

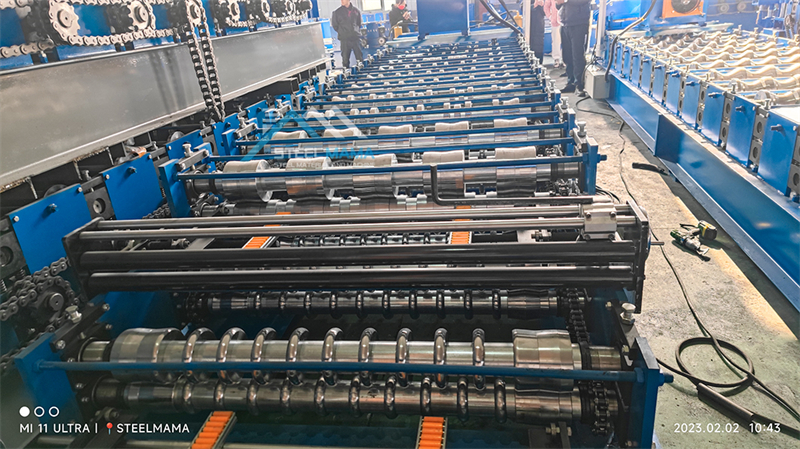

double roofing sheets forming machine

825 Corrugated roof sheet Machine

GLAZED STEEL ROOF TILE MACHINE CHINA MANUFATURER

The antique glazed tiles formed by the rolling die of the glazed tile machine have the characteristics of beautiful appearance, simple and elegant, elegant and unique shapes, and can be widely used in garden-style factories, tourist scenic spots, pavilions, hotels, villas, exhibition halls, resorts, homes and other buildings. and room outside decoration. The maximum loading width is 1250mm, the maximum loading weight is 6000kg, and the rolling speed can reach 2-6m/min.

color tile machine

CARE AND MAINTENANCE


1. The filter should be replaced or cleaned every time the oil is changed;

2. There is also the air filter on the fuel tank, which is checked and cleaned every 3 months and replaced every 1 year.

3. When the color tile machine tool has related alarms or other filter abnormalities such as dirty oil, it should be replaced;

4. It should be noted that the hydraulic components should be cleaned every month to prevent dirt from entering the system, and cleaning agents cannot be used;

5. Each steel plate is fixed until the next steel plate is installed. Fixation begins at the center of the plate and then spreads out to the sides,Fix the overlapping edges of the steel plate. For end lap joints, since roof and wall profile panels are made by continuous processing,This can be shipped,The steel plate is supplied at the length limited by the transportation conditions, usually no overlap is required, and the length of the steel plate is sufficient to meet the needs of roof laying. Selection of special screws for automatic reinforce corrugated tile machine, When selecting fixing screws, the fixing parts should be selected according to the service life of the structure.And pay special attention to the life and specified,Whether the life of the fixed parts is consistent.

6. Clamp the lapped steel plates with a pair of jaw pliers. When the steel plate is in place in the longitudinal direction, its ends, especially the upper end, need to be clamped with pliers points, so as to ensure that one end of the steel plate is in place, and the lap joint at one end is also in the correct position, so as to fix the steel plate, in the solid,During the setting process, the clamps should always clamp the steel plate in the longitudinal direction.


7. After using the new machine for one month, check whether there is any deformation at the bend of each oil pipe. If there is any abnormality, it should be replaced. After two months of use, it should be replaced.

RELATED PLATE TYPE

Steel roll roofing sheet machine

double layer roofing sheet roll forming machine

Corrugated Type Roll Forming Sheet double layer roof roll forming machine

IBR Type Roll Forming Sheet

double layer roofing sheet rolling machine

Factory Show:

double layer tile roof forming machine



1234                 STEELMAMA was founded in 2009. Since its inception, STEELMAMA has always uphold the "create a first-class enterprise, first-class talents, first class contribution" vision, to create a well-known "STEELMAMA" brand.

STEELMAMA’s main business is to "project" as the theme of “CHINA STEEL AGENT SERVICE”, leading products for steel profilemachinery include roll forming machine, press brake bending machine and other steel processing machinery, and steel coil include PPGI coil, GI coil, Aluminium coil, Alu-zinc coil and steel strips and plates, also steel building material like metal roofing sheet, purlin sections, H steel, welding mill tube and some hardwares to be global brand.


123
double layer glazed tile roll forming machine

double layer roofing sheet roll forming machineDouble Layer Machine




Double Layer MachineDouble Layer MachineDouble Layer Machine

FAQ


1234

1. Does one machine can only produce one style panel profile?


Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

3. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

4. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

6. You are trade company or factory?

We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.

7. Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.

8. How long the machine could be made?

Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
