Línea de producción de máquina formadora de rollos en frío de lámina corrugada G550 para techos de tejas de metal esmaltado completamente automático

  • Máquina para láminas de techo corrugado G550

  • STEELMAMA

Estado de Disponibilidad:
Cantidad:

Full Automatic Glazed Metal Tile Roofing G550 Corrugated Sheet Cold Roll Forming Machine Production Line

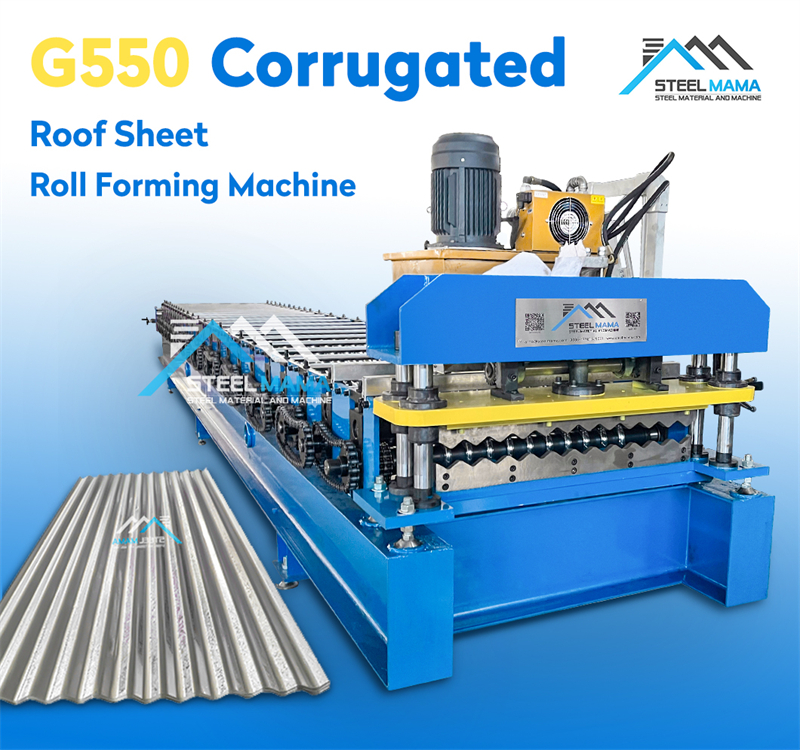

corrugated panel roll forming machine for roofing PRODUCT DISPALY

corrugated roof sheet making machine

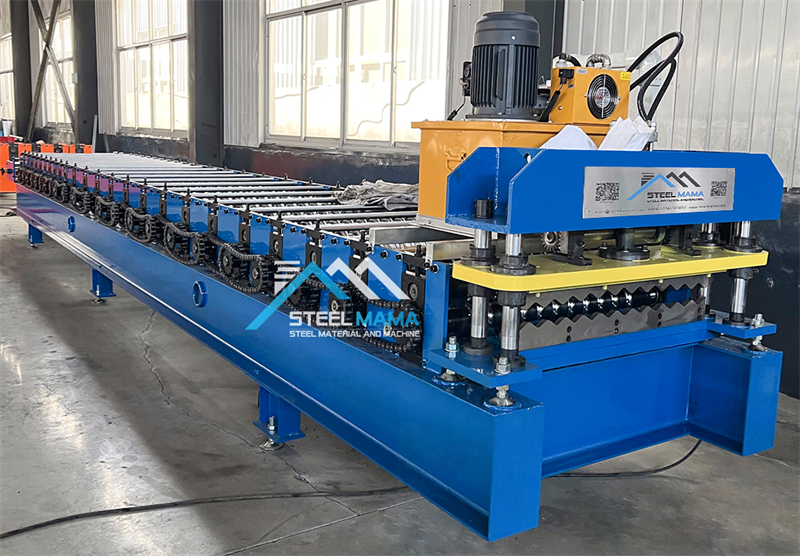

corrugated roof panel machinecorrugated roofing sheet panel forming machine

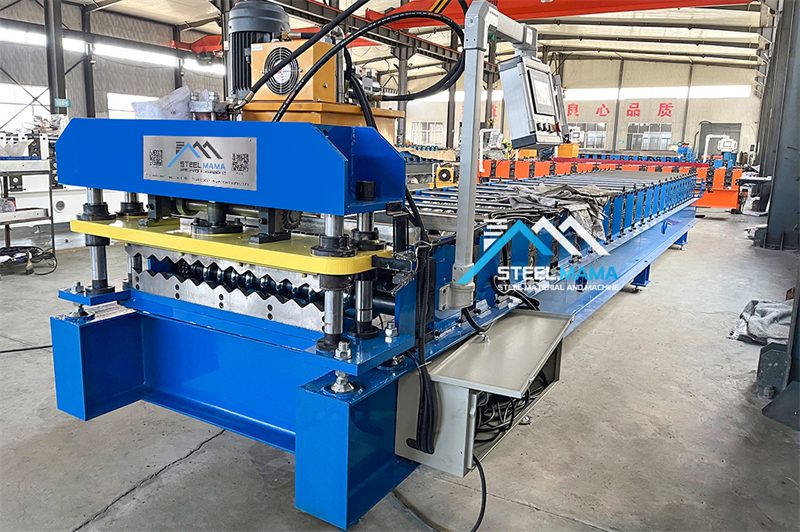

corrugated roofing sheet panel forming machinecorrugated wall roll forming machine

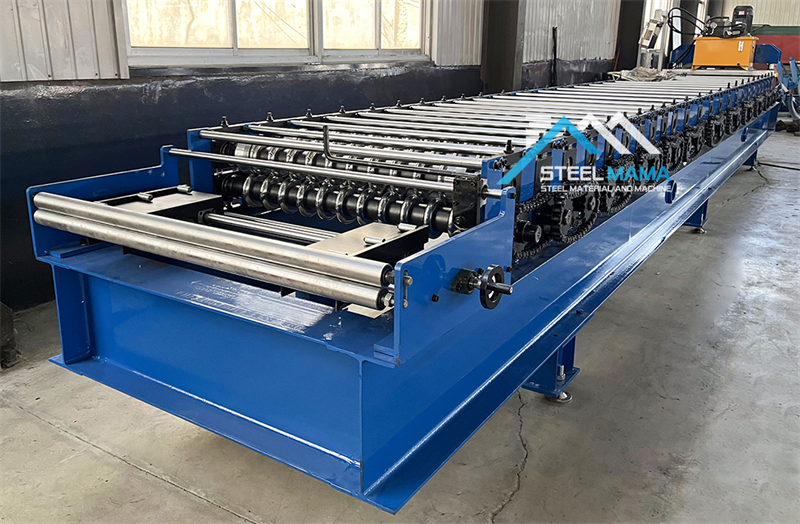

corrugated metal sheet roof panel forming machine

corrugated roof and wall roll forming machine

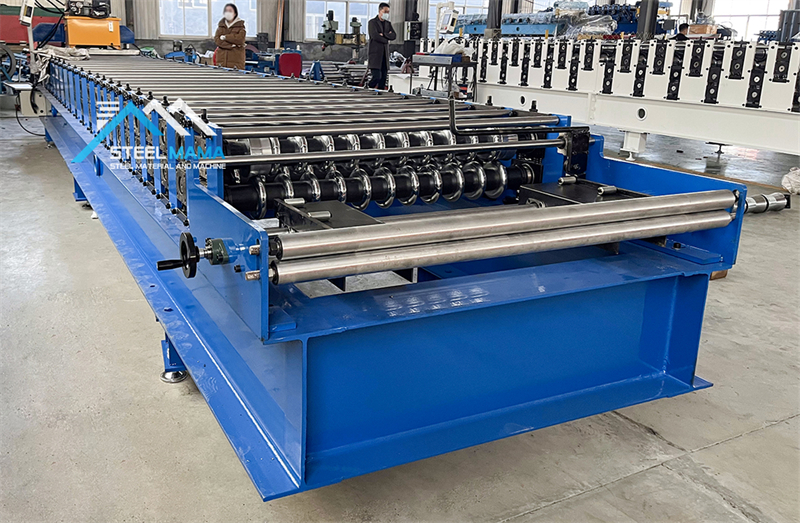

corrugated profile roof panel forming machine

corrugated roof and wall panle making machine

roof panel making machine for corrugated roof

G550 corrugated metal wall panels forming machine

What is the best tool for cutting corrugated sheet?

High quality corrugated machine corrugated roll forming machine corrugated roof sheet making machine suppliers for building material machinery is used for making the corrugated tiles in batch. This machine adopted PLC control cabinet achieved full automatic easy operation produce.

How to Cut Corrugated Metal Roofing Panels

Best Tool to Use

The recommended tool to use when cutting corrugated metal roofing will differ dependant on the type of metal. If the metal is aluminium, use tin snips to cut. However, if the sheet metal is steel, it is advised that you use a pair of straight edge snips instead.

Step-by-Step

  1. To ensure optimum stability whilst cutting, lay the corrugated metal sheet onto a flat and secure workbench surface.

  2. Use a tape measure to carefully measure out the cutting area.   Make marks at both ends of the sheet (length or width wise), then join using a pencil line.

  3. Before cutting, it is important to identify whether the metal sheet made from is steel or aluminium.   If you do not already know, you can easily determine by holding a magnet up to the sheet.   If the magnet is attracted, then the sheet is steel, however if it is not, then sheet is made of aluminium.

  4. Use either tin snips or straight edge snips to cut along the previously made cut line.

Machine Flow Chart


Metal steel arch roof forming machine corrugated equipment

Main Workflow Of Full Automatic Glazed Metal Tile Roofing G550 Corrugated Sheet Cold Roll Forming Machine Production Line

          Decoiler  →  Molding core  →  Hydraulic System  →   Automatic Control system  →   Step Formed

 Mechanism  →  Automatic Shearing Mechanism  →   Products Receiving Tables


Layout of roof tile machine



   Roll Forming Machine Components:

Decoiler

1 set

Feeding Device  With Pre-sliding Cutter

1 set

Forming Machine

1 set

Cutting Device

1 set

PLC Control Box

1 set
  Hydraulic Pump Station 1 set
Production Support Table 1 set

 1  Decoiler

Max. Width 1000-1250mm Roof sheet machine1
Inner Diameter Φ450 – Φ550 mm
Out Diameter 1500 mm
Max. Loading Capacity: 5000 kgs
Working Way Passive or hydraulic

 2  Feeding device with

    Pre-sliding cutter

Roof sheet machine 2

 3  Roll Forming Machine

Material Thickness 0.25-0.8mm PPGI and GI Roof sheet machine 3
NO. of Roller Stations 18 stations
Material for Rollers

45# steel polished and coated

with chrome HRC58-62°

Material for Shaft High grade 45# steel polished(CNC lathe)
Diameter of Shaft 70mm(Solid shaft)
Frame Panel 16*290*580mm
Bottom Frame 350x6mm H steel
Motor Power 5.5 KW(shanghai motor)
Driven Type Wall Plate Chain Drive
Chain and Gear 1", 17 teeth sprocket, 50 link chain
Speed About 15m/min

 4  Cut-off Device

Material for Cut-Off Modular Cr12 steel after treatment Roof sheet machine 4
Hardness for Heat Treatment HRC58 – 62°
Cut-Off Type Qualified pillar cutting
Motor for Hydraulic Stand 4KW
Punching Die Material Cr12 steel after treatment

 5  PLC Control Box

Type PLC Frequency Control System with touch screen Roof sheet machine 5
PLC Brand Delta  Encoder Brand: Omron
Length Error ±2mm
Language English and Chinese
Voltage 380v/50HZ, 3Phase (It depends on customer requirement)

 6  Hydraulic Pump Station

Oil type 46# hydraulic oil Floor Decking Machine (9)
Pump brand China brand
Motor power 4kw
Solenoid valves Huade brand
Solid valve Single
Cooling way Fan

 7  Production Support Table

No Power Type
Roof sheet machine 7
Length 2m

What is the lifespan of corrugated roofing?

The average lifespan of corrugated metal roofing is about 30-45 years. With careful maintenance, they can even last beyond their manufacturer-estimated lifespan. In an ideal location, corrugated metal roofs require the least maintenance.

Related Plate Type

Steel roll roofing sheet machine

Glazed Tile Type Roll Forming Sheet

详情通用_03

Corrugated Type Roll Forming Sheet 详情通用_05

IBR Type Roll Forming Sheet

详情通用_07

Factory Show:

详情通用_08

1234 STEELMAMA was founded in 2009. Since its inception, STEELMAMA has always uphold the "create a first-class enterprise, first-class talents, first class contribution" vision, to create a well-known "STEELMAMA" brand.

STEELMAMA’s main business is to "project" as the theme of “CHINA STEEL AGENT SERVICE”, leading products for steel profilemachinery include roll forming machine, press brake bending machine and other steel processing machinery, and steel coil include PPGI coil, GI coil, Aluminium coil, Alu-zinc coil and steel strips and plates, also steel building material like metal roofing sheet, purlin sections, H steel, welding mill tube and some hardwares to be global brand.

123
详情通用_10

详情通用_11详情通用_12


详情通用_13详情通用_14详情通用_15

FAQ

1234

1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

3. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

4. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

6. You are trade company or factory?

We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.

7. Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.

8. How long the machine could be made?

Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
