Precio bajo Nuevo tipo 840 IBR Hoja de techo de metal trapezoidal Panel único Máquina formadora de rollos en frío para Camerún

  • Máquina formadora de láminas para techos 840 IBR

  • STEELMAMA

Estado de Disponibilidad:
Cantidad:

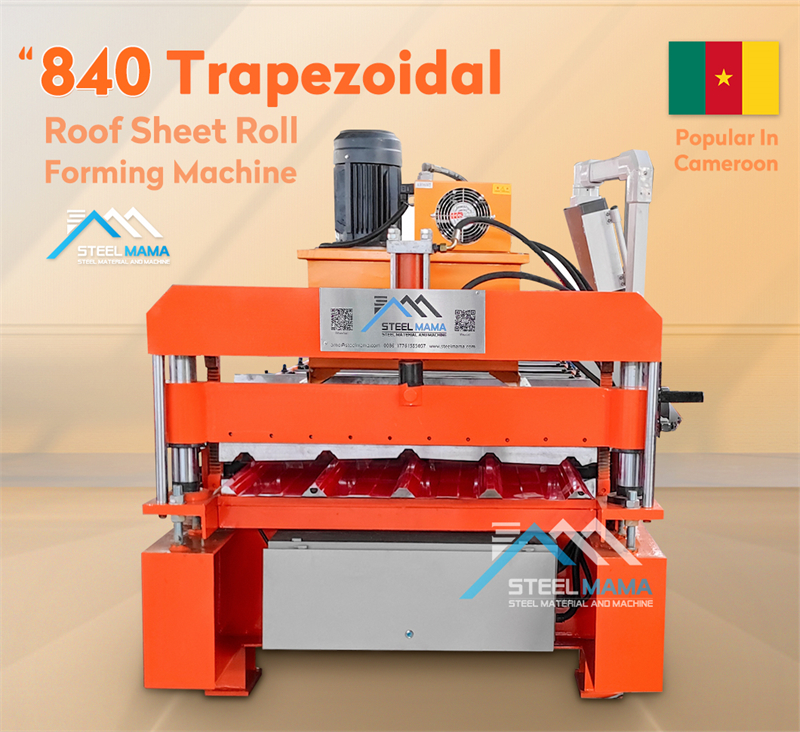

Low Price New Type 840 IBR Trapezoidal Metal Roofing Sheet Single Panel Cold Roll Forming Machine For Cameroon

Cameroon trapezoidal machine840 Trapezoidal Machine

PRODUCTION DESCRIPTION

Trapezoidal Profile Roofing Sheet Making Machine

A trapezoidal sheet roll forming machine is a regular metal sheet roll former that produces metal roofing sheets or roof panels for both individual and industrial building.

This IBR metal sheet roll forming machine produces trapezoidal sheets from colour prepainted steel coils, Galvanized steel coils, aluzinc sheets, Generally, material thickness varies from 0.3 to 0.8mm, and width varies from 914mm to 1250mm. However, in some applications, material thickness can reach up to 1.5mm, like roof deck. Furthermore, in some countries or areas, people use G550 material to make full hard metal roofing sheets.

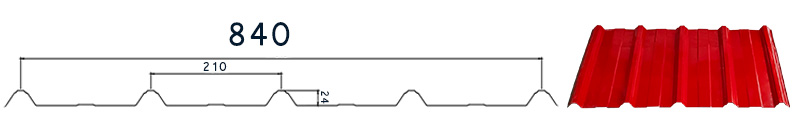

PROFILE

840

WORK FLOW

Main Workflow Of 840 Trapezoidal Sheet Roll Forming Plants

ibr roof sheet roll forming machine

Uncoiler  →  Molding core  →  Hydraulic System  →   Automatic Control system  →   Step Formed Mechanism  →  Automatic Shearing Mechanism  →   Products Receiving Tables


Layout of roof tile machine

                roofing trapezoidal model making machinery  trapezoidal roll forming machine



 Trapezoidal Roll Forming Machine Components:

Decoiler

1

set

Feeding Device  With Pre-sliding Cutter

1

set

Forming Machine

1

set

Cutting Device

1

set

PLC Control Box

1

set

  Hydraulic Pump Station

1

set

Production Support Table

1

set


 1  Decoiler

Max. Width

1000-1250mm

Roof sheet machine1

Inner Diameter

Φ450 – Φ550 mm

Out Diameter

1500 mm

Max. Loading

Capacity: 5000 kgs

Working Way

Passive or hydraulic

 2  Feeding device with

    Pre-sliding cutter

Roof sheet machine 2

 3  Roll Forming Machine

Material Thickness

0.25-0.8mm PPGI and GI

Roof sheet machine 3

NO. of Roller Stations

18 stations

Material for Rollers

45# steel polished and coated

with chrome HRC58-62°

Material for Shaft

High grade 45# steel polished(CNC lathe)

Diameter of Shaft

70mm(Solid shaft)

Frame Panel

16*290*580mm

Bottom Frame

350x6mm H steel

Motor Power

5.5 KW(shanghai motor)

Driven Type

Wall Plate Chain Drive

Chain and Gear

1", 17 teeth sprocket, 50 link chain

Speed

About 15m/min

 4  Cut-off Device

Material for Cut-Off Modular

Cr12 steel after treatment

Roof sheet machine 4

Hardness for Heat Treatment

HRC58 – 62°

Cut-Off Type

Qualified pillar cutting

Motor for Hydraulic Stand

4KW

Punching Die Material

Cr12 steel after treatment




 5  PLC Control Box

Type

PLC Frequency Control System with touch screen

Roof sheet machine 5

PLC Brand

Delta  Encoder Brand: Omron

Length Error

±2mm

Language

English and Chinese

Voltage

380v/50HZ, 3Phase (It depends on customer requirement)



 6  Hydraulic Pump Station

Oil type

46# hydraulic oil

Floor Decking Machine (9)

Pump brand

China brand

Motor power

4kw

Solenoid valves

Huade brand

Solid valve

Single

Cooling way

Fan

 7  Production Support Table


No Power Type


Roof sheet machine 7

Length

2m


Trapezoidal Roof Sheet  Roll Forming Machine

840 Trapezoidal Roll Former

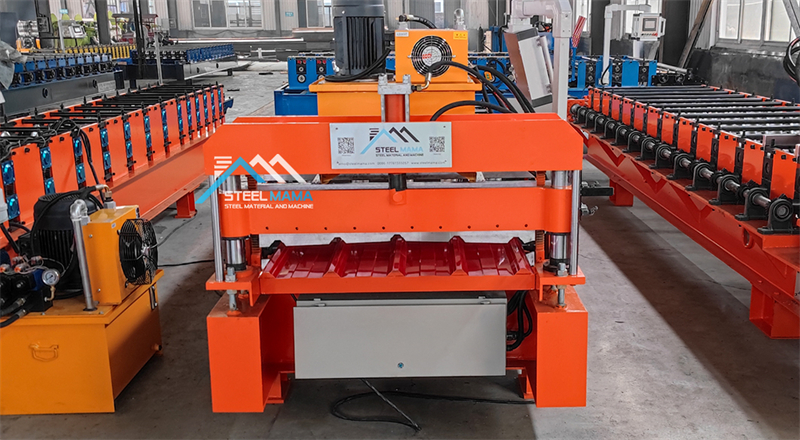

small waves trapezoidal sheet machine

IBR Profile Roofing Sheet Making Machine

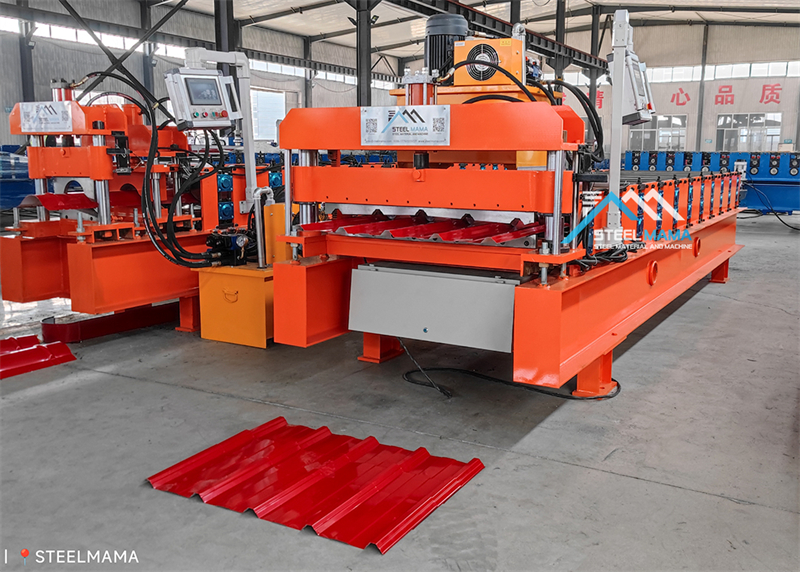

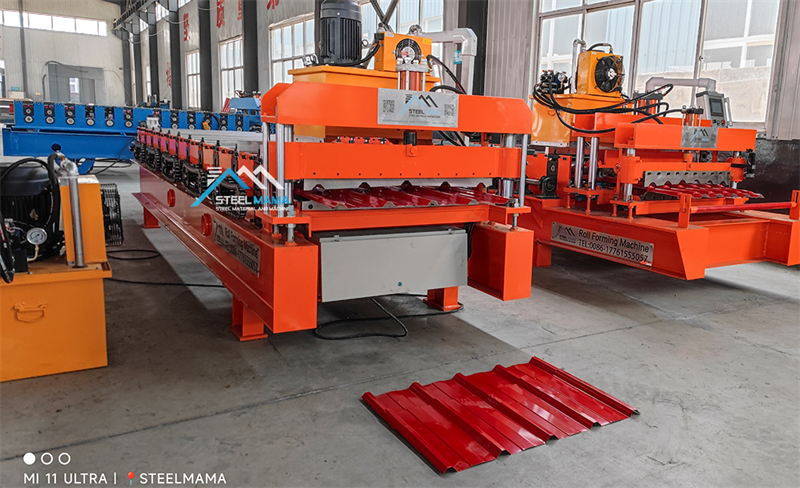

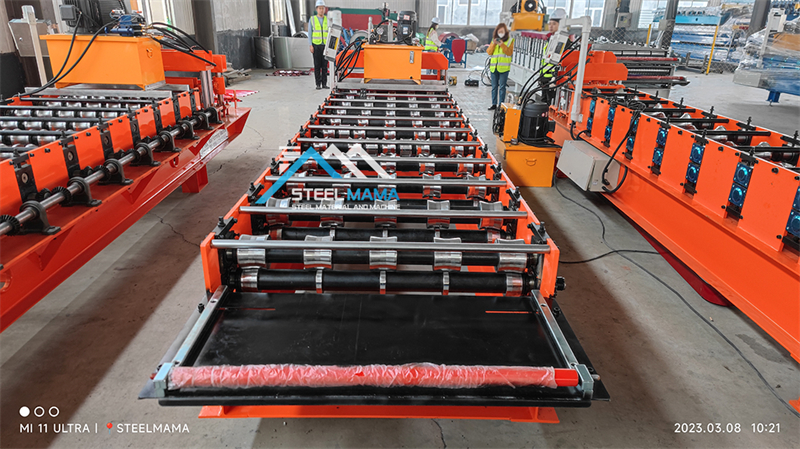

Trapezoidal Metal Sheet Roofing Machine840 Trapezoidal roof sheet MachineIBR roof sheet machineHigh Quality Trapezoidal Roof Sheet Roll Forming Machine840 Trapezoidal roof sheet Machine

Cameroon trapezoidal machine

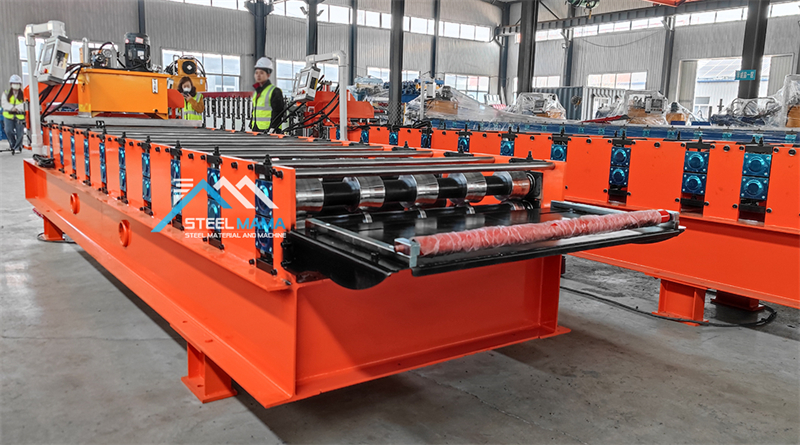

840 Trapezoidal IBR roofing sheet MachineIBR iron roofing sheet making machine

Easy installation

forming lines are well installed and tested before delivery, customer only connect some wire and tubes according to video and manual to start forming machines.

APPLICATION

steelmama Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:

1-durable

2-withstand servere conditions.

3-low cost

4-low initial investment and low maintain cost

5-environment friendly

6-all the material can be recycled

7-flexible design

8-can relocate

9-install time considerably reduced

Operate easily , work automatically with PLC controller control.

Decoiler- forming-cut – run out

Application of Trapezoidal Roof Roll Forming Machine

This IBR profile is designed for commercial and industrial roofing; which is suitable for low pitch roofing as well as curved roofing.Sheets with higher ribs and bold ribs, making exceptionally attractive and high-performance roofing and cladding product for various Light Steel structure construction, civil construction, and mansions Building.

trapezoidal roll forming machine (2)

What is a trapezoidal roof panel?

Trapezoidal Panel is a structural metal roofing panel that provides superior wind and weather protection under all roof loading conditions.

Trapezoidal Profile Roofing Sheets are profile sheets that have trapezoidal shaped profile shape and these are coated with multiple beautiful colors to give attractive appearance.


trapezoidal sheet roll forming machine is a regular metal sheet roll former that produces metal roofing sheets or roof panels for both individual and industrial building.


Trapezoidal roofing sheets are the most popular metal roof panels not only for residential buildings but also for commercial or industrial buildings.  There are so many different profiles for a variety of applications.  People like to use low-profile trapezoidal sheets for elevation and IDT roofing, while for wide-span roofing and load-bearing structures, they tend to select high-profile trapezoidal sheets.  In addition,  trapezoidal sheets have other names in Africa as industrial trough IT4, IT5, IT6 roof profiles, therefore people can barely find two exactly the same trapezoidal sheet roll forming machine in the markets.


There are different names for trapezoidal sheet roll forming machines in some regions or areas!   For example, in Africa, people like to call it aluminum or steel IDT Roofing Sheet roll forming machine, and sometime they give the name industrial trough IT4, IT5, IT6 roof sheet roll forming machine etc.

STEELMAMA designs and builds customized trapezoidal sheet roll forming machines.  For instance, some customers ask for  metal roofing sheet roll forming machine, some customers may prefer a separate forming stands structure trapezoidal sheet roll forming machine, or some customers may need safety guard on the roll forming machine body etc.



Related Plate Type

Steel roll roofing sheet machine

Glazed Tile Type Roll Forming Sheet

详情通用_03

Corrugated Type Roll Forming Sheet 详情通用_05

IBR Type Roll Forming Sheet

详情通用_07

Factory Show:

详情通用_08



1234                 STEELMAMA was founded in 2009. Since its inception, STEELMAMA has always uphold the "create a first-class enterprise, first-class talents, first class contribution" vision, to create a well-known "STEELMAMA" brand.

STEELMAMA’s main business is to "project" as the theme of “CHINA STEEL AGENT SERVICE”, leading products for steel profilemachinery include roll forming machine, press brake bending machine and other steel processing machinery, and steel coil include PPGI coil, GI coil, Aluminium coil, Alu-zinc coil and steel strips and plates, also steel building material like metal roofing sheet, purlin sections, H steel, welding mill tube and some hardwares to be global brand.


123
详情通用_10

详情通用_11详情通用_12




详情通用_13详情通用_14详情通用_15

FAQ

1234

1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

3. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

4. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

6. You are trade company or factory?

We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.    7. Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.

8. How long the machine could be made?

Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
